DIS PDU Analyzer

DIS PDU Analyzer can process Protocol Data Unit (PDU) capture files offline. It generates human-readable text files, exports PDU data in comma-separated values (.csv) format for import into other database applications and allows you to inspect, edit, or replay individual PDUs.

What kind of filtering does DIS PDU Analyzer provide?

DIS PDU Analyzer provides seven filtering options that work independently:

Filtering on exercise ID
Filtering on PDU type and encoding scheme for Radio Signal PDUs
Filtering on PDU family
Filtering on Entity State PDU kind
Filtering on entity state domain for platforms or lifeforms
Originating simulator
Time

How are PDU structures defined for DIS PDU Analyzer?

DIS PDU Analyzer uses custom PDU definitions from the DIS Link Monitor. Generate your own definition for any PDU type, including nonstandard PDUs.

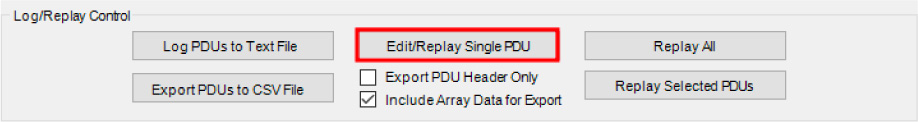

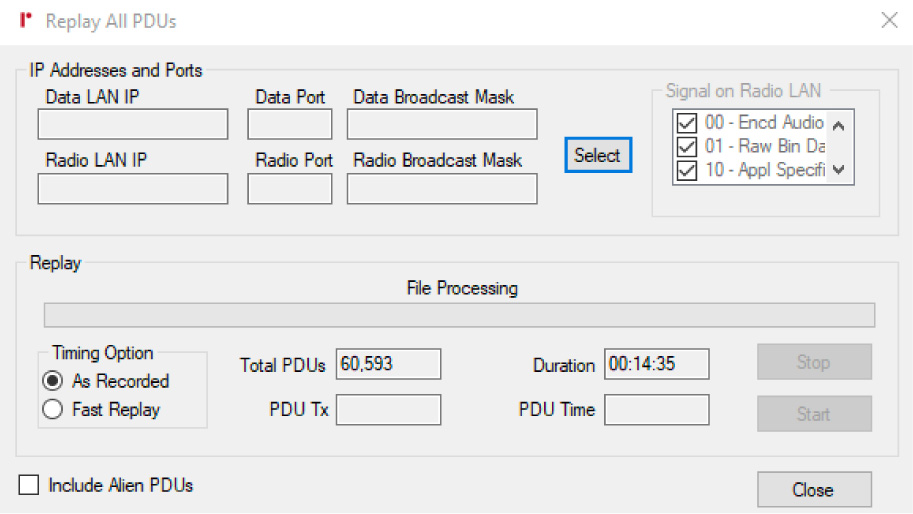

What options does DIS PDU Analyzer provide for PDU Replay?

DIS PDU Analyzer provides three mechanisms to replay PDUs:

Single PDU
Multiple PDUs
All PDUs

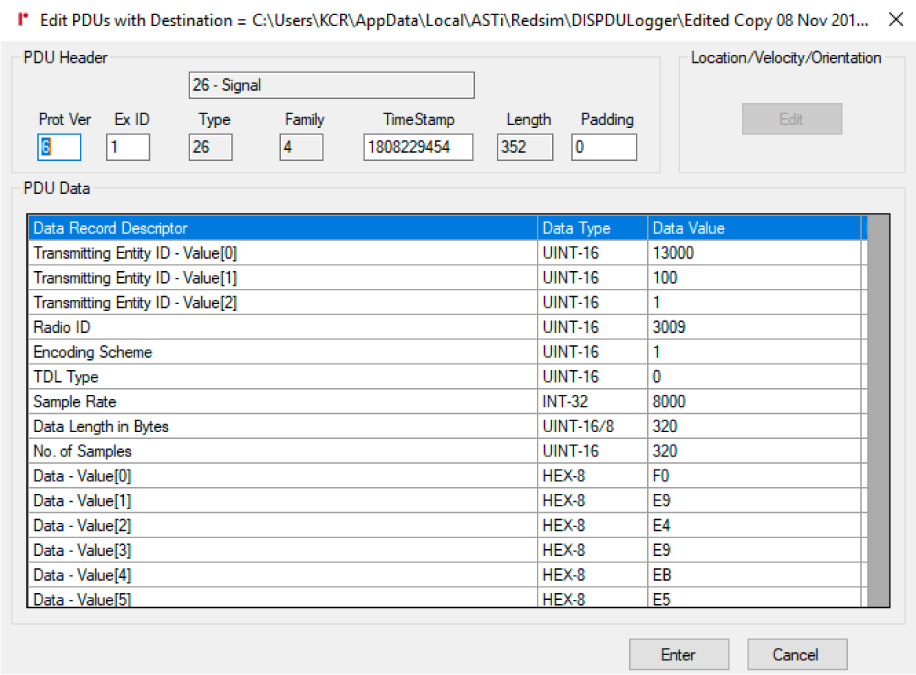

What parts of a PDU may be edited prior to replay?

The only elements of a PDU that you cannot edit are the PDU type, family codes, and length. However, you can edit all other records in the PDU header and data.

PRICING

SINGLE USER LICENSE
$ 900 US
$ 1,080 Int.Enterprise License options available. Contact ASTi for pricing.
